What Is ADL in Baby Diapers? Materials, Working Principle & Future Trends

Views: 0 Author: Site Editor Publish Time: 2026-04-30 Origin: Site

Inquire

It is 2:00 AM. Your baby cries. You change the diaper and find a red, irritated bottom—again. You blame yourself for not changing it sooner. But the real culprit might be something you have never heard of: a paper-thin layer inside the diaper called the Acquisition Distribution Layer (ADL). While parents obsess over brand names and absorbency claims, this invisible "traffic controller" is quietly doing the hardest job of all—making sure urine never lingers on your baby's skin.

Unfolded baby diaper showing the ADL (Acquisition Distribution Layer) as a white fibrous sheet between the soft topsheet and absorbent core, demonstrating its physical location and texture — Figure 1: An unfolded baby diaper revealing the ADL—a thin, fibrous layer (often less than 1mm) positioned between the topsheet and absorbent core, responsible for rapid liquid acquisition and distribution.

I. What Is ADL for Baby Diapers? The Traffic Controller of Liquid

The Acquisition Distribution Layer (ADL) sits between the skin-friendly topsheet and the absorbent core. Its job sounds simple: move liquid from Point A (skin) to Point B (core) as fast as possible. But liquid, like traffic without signals, pools and stagnates. The ADL is the signal system.

Core Function	What It Actually Does
Rapid Acquisition	Pulls urine away from skin instantly. Less contact time = fewer rashes.
Uniform Distribution	Spreads liquid lengthwise across the entire core, preventing localized saturation and blowouts.
Temporary Storage	Holds liquid briefly so the core has time to absorb, preventing backflow.
Enhanced Utilization	Ensures every inch of the absorbent core works, maximizing overall performance.

What happens without it? Urine pools in one spot. The local core area saturates within minutes. Liquid backs up toward the skin. The baby sits in dampness. Parents blame the brand. The real failure is architectural.

II. The Materials: From Simple Sheets to Precision Engineering

ADL materials have evolved from basic structures to sophisticated composites. Today, two categories dominate: nonwoven ADL and perforated film ADL.

1. Nonwoven ADL: The Industry Standard

Nonwoven fabrics are the workhorse of modern ADL design, categorized by structure:

Single-Layer Through-Air Bonded Nonwoven

Made from ES fibers (Ethylene-Propylene Side By Side bicomponent fibers)
Process: Through-air thermal bonding
Result: A fluffy, breathable structure with excellent liquid diffusion
Status: The mainstream choice for early and current standard designs

Dual-Layer Composite Nonwoven: The Upgrade

This is where material science gets clever. Two fiber webs with different properties are laminated together:

Layer	Fiber Spec	Function
Upper layer	Coarse denier (1.5–3D), porous structure	Rapid liquid reception and conduction
Lower layer	Fine denier (0.5–1D), high hydrophilicity	Guides vertical penetration into the core

The Physics Explained

This uses the differential capillary effect. Think of it as using two drinking straws—one thick, one thin. Liquid naturally moves toward the finer channels where capillary pressure is stronger. The result? Faster downward flow without sacrificing lateral spread.

Industry Note: Leading brands like Kao and P&G use ES fiber through-air bonded nonwovens as the core material for their ADL for baby diapers.

2. Perforated Film ADL: Niche Applications

Made from polyethylene (PE) film with specialized perforations. Offers excellent anti-rewet performance but limited distribution capability. Used where liquid-locking is prioritized over spreading.

3. The Fiber "Formula"

ADL performance hinges on fiber selection. Here are the levers engineers pull:

Parameter	Typical Range	Why It Matters
Hydrophilicity	Surfactant-treated	Long-lasting wettability for rapid conduction
Fiber Fineness	Coarse: 1.5–3D; Fine: 0.5–1D	Coarse creates pores; fine enhances capillary action
Fiber Length	Long: 38–51mm; Short: varies	Long fibers improve liquid guidance; short fibers add bulk
Fiber Types	ES, PP, PET, modified cellulose	Mainstream to premium options

III. How It Works: A Three-Stage Navigation System

The operation of ADL for baby diapers is a masterclass in fluid mechanics and material science, unfolding in three critical stages:

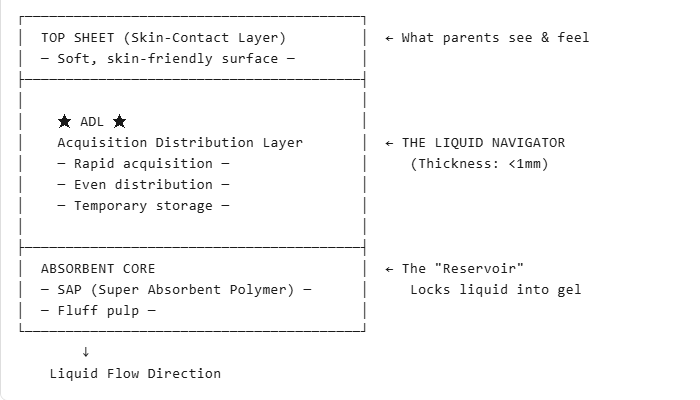

Cross-section diagram of baby diaper showing three layers: Top Sheet (skin-contact layer), ADL (Acquisition Distribution Layer) in the middle, and Absorbent Core with SAP at the bottom. Liquid flows downward through each layer. — Figure 2: Diaper layer structure showing the ADL positioned between the topsheet and absorbent core

Stage 1: Acquisition

Urine contacts the topsheet and penetrates to the ADL within fractions of a second. The ADL's fluffy structure and hydrophilic surface "capture" the liquid instantly, preventing backflow to the skin.

Stage 2: Conduction & Distribution

This is where the engineering shines:

Lateral Distribution: The fiber network guides liquid to spread evenly along the diaper's longitudinal axis (front to back). No pooling. No hot spots.
Vertical Penetration: Through differential capillary effects or engineered channels, liquid is driven downward into the absorbent core.
Premium Innovation: Some products use vein-like channel structures—radial channels that increase diffusion speed by 40% and reduce skin contact time to under 0.3 seconds. That is faster than a human blink.

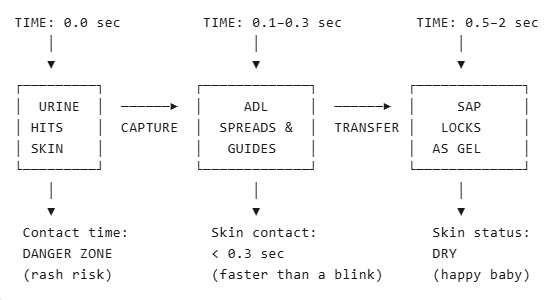

Timeline diagram showing three stages of liquid management in a diaper: at 0.0 seconds urine hits the skin (Danger Zone), at 0.1-0.3 seconds the ADL captures and spreads the liquid (under 0.3 seconds, faster than a blink), and at 0.5-2 seconds the SAP locks it as gel (Dry skin, happy baby). — Figure 3: Liquid journey from skin contact to gel lock-in, completed in under 2 seconds

Stage 3: Transfer

The ADL hands off evenly distributed liquid to the absorbent core. Super Absorbent Polymer (SAP) locks it into a gel state. The skin stays dry. The parent stays happy.

IV. Innovation Frontiers: Structure, Performance, and Myth-Busting

1. Structural Innovations

Design	Description	Benefit
Sandwich Structure	Fluffy through-air nonwoven core + dense spunbond upper/lower layers	Balances fluid guidance and liquid-locking
Comb-Shaped ADL Core	Patented by Beishule; comb-tooth structure	Accelerates longitudinal diffusion, reduces leakage risk
Channel Technology	Grooves on ADL or topsheet guide flow	Some products use channels to replace traditional ADL for thinner diapers

2. The Three Metrics That Matter

Metric	Target	What It Means for Parents
Penetration Time	< 2 seconds	Liquid vanishes from skin almost instantly
Distribution Area	Maximum spread	Core works uniformly; fewer leaks
Rewet Amount	Minimum	Under pressure, liquid stays locked away

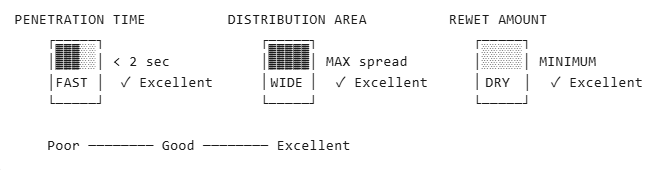

Performance dashboard showing three key ADL metrics: Penetration Time rated as Fast under 2 seconds (Excellent), Distribution Area rated as Wide Maximum spread (Excellent), and Rewet Amount rated as Dry Minimum (Excellent). — Figure 4: The three core performance metrics that define ADL quality

3. Common Misconceptions—Clarified

"Does blue-colored ADL smell?"

No. Blue is a fiber dye. High-quality products use odorless, eco-friendly dyes. If a diaper smells, the culprit is usually adhesive or packaging off-gassing—not the ADL color.

"Is thicker ADL better?"

No. Performance depends on material and structure, not bulk. Thinning is the industry trend. For example, Texsus's high-bulk ADL achieves excellent performance at minimal thickness—ideal for ultra-thin diapers.

V. Future Directions: Green, Smart, and Efficient

As consumer expectations and environmental regulations tighten, ADL for baby diapers is evolving in four directions:

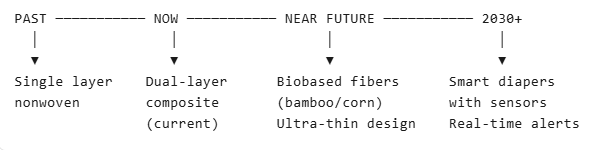

Technology evolution timeline from past to 2030 and beyond: Past used single-layer nonwoven, current uses dual-layer composite, near future adopts biobased fibers like bamboo and corn with ultra-thin design, and 2030 plus integrates smart sensors with real-time alerts to parents' phones. — Figure 5: ADL technology evolution from basic nonwovens to smart sensing systems

Trend	What It Means
Biobased Materials	Bamboo fiber, corn fiber, and other biodegradable options replacing petroleum-based fibers
Ultra-Thin High Efficiency	Optimized fiber ratios and structures that maintain performance with less material
Multifunctional Integration	Combining ADL with topsheet or core into unified designs—simpler manufacturing, better stability
Smart Sensing	Micro-sensors embedded to monitor urine volume and humidity in real time, sending change alerts to parents' phones

Conclusion: Big Technology in a Small Layer

ADL for baby diapers may be thin, but it is the soul of dryness performance. From single-layer through-air nonwovens to dual-layer composites, from simple fiber webs to vein-like channels, every upgrade reflects the seamless integration of material science and ergonomics.

The next time you change your baby's diaper, remember: that dry, comfortable bottom is not luck. It is engineering.
